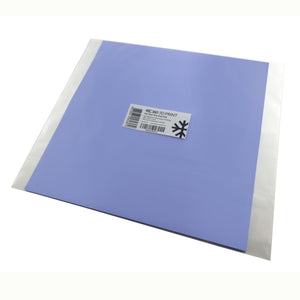

EC360® 3D PRINT Hot bed thermal pad for 3D printer

  • €19,99
    Unit price  per
Tax included. Shipping calculated at checkout.

Quantity 2+ 4+ 8+ 16+ 32+ 50+ 100+ 200+ 500+
Discount 6% 12% 15% 21% 26% 31% 35% 38% 40%

The EC360® 3D PRINT series presents specialized thermal pads for use in the hot bed of 3D printers.

Its balanced thermal conductivity of 2 W/mK and 3 mm thickness make it particularly resilient and guarantees an excellent distribution of heat throughout the thermal pad. For the hot bed this means that it will heat up quicker and that the heat will evenly spread across the entire surface of the printing surface. Furthermore the thermal pad is self adhesive meaning that the glass plate/printing surface sticks to it and is safely attached while printing, but can also be taken off at any time. There is no more need for using brackets to attach the glass plate.

Being based on silicone, the thermal pads have good elasticity and compression abilities. This means this type of thermal pad will spring back into its original form even after longer periods of compression and perfectly adapt to any tiny surface irregularity.

Installation Recommendation:

  • Clean surfaces from dirt and other possible residue. If applicable, isopropyl 90% alcohol is recommended to ensure a clean surface.
  • Remove one of the protective layers and place the exposed side of the thermal pad facing the surface of the chip. Once positioned gently press on it to make it stick.
  • Remove the remaining protective layer and install the glass plate on top of the thermal pad.
